| Product: Edge | Model: EDGE-RK3576 | ||||||||
| Email: | Telephone: | ||||||||

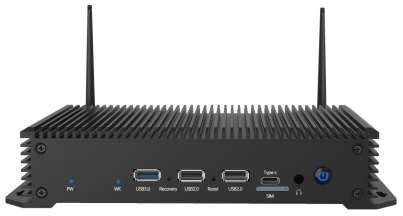

| Photo | |||||||||
| Product dimension | 190 x 106 x 38 mm | ||||||||
| Qty per unit packing | 1PC | ||||||||
| Unit packing: (L*W*H) | 208 x 140 x 66 mm | ||||||||
| Unit packing (G.W.) | 0.48 Kg | ||||||||
| Qty per export carton | 20PCS | ||||||||
| Export carton (W*H*L) | 44.0 x 35.0 x 30.0 CM | ||||||||
| Export carton (G.W.) | 10 Kg | ||||||||
| Product Colour | Black | ||||||||
| Hardware Specifications | |||||||||
| Chipset | RK3576 with Octa-core , Quad-Core Cortex-A72 and Quad-Core Cortex-A53 | ||||||||
| GPU | Mali-G52 MC3 | ||||||||
| NPU | 6.0 TOPS for INT8 Supports INT4,INT8,INT16,FP16,BF16 and TF32 operation | ||||||||
| FLASH | EMMC:16G/ 32GB /64G /128G Or UFS: 32GB /64G /128G/256G/512G/1T | ||||||||
| SDRAM | LPDDR5: 32bit 4GB /8GB/16GB | ||||||||
| Power Supply Specifications | |||||||||
| ◆ Power Supply | DC 12V/2.0A | ||||||||
| ◆Power Indicator (LED) | Power ON :Blue | ||||||||
| Main Features | |||||||||
| ◆OS | Android 14.0/Debian/buildroot/Ubuntu/armbian/wayland | ||||||||
| ◆ Video Decoder | ◼ H.264 /AVC up to 4K@60fpS ◼ H.265/HEVC up to 8K@30fps or 4K@120fpS ◼ VP9 up to 8K@30fps or 4K@120fpS ◼ AVS2 up to 8K@30fps or 4K@120fpS ◼ AV1 up to 8K@30fps or 4K@120fpS | ||||||||
| ◆ Video Encoder | ◼ H.264 and H.265 up to 4K@60fpS ◼ Supports multi-stream encoding | ||||||||
| ◆ JPEG Encoder | ◼ YUV400/YUV420/YUV422/YUV444 ◼ Supports JPEG up to 4K@60fpS ◼ Supports image size is form 16×16 to 65520×65520 | ||||||||
| ◆ JPEG Decoder | ◼ YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 ◼ Supports JPEG up to 4K@60fpS ◼ Supports image size is form 48×48 to 65520×65520 | ||||||||
| ◆ Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg | ||||||||
| ◆ Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE | ||||||||
| ◆ Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF | ||||||||
| ◆ HDR | HDR10 / HDR HLG/HDR ViVid | ||||||||
| ◆ USB | 1 Type-c USB 3.2 Gen1, 1 Type-A USB 3.2 Gen1 and 2 High speed USB 2.0 | ||||||||
| ◆ DisplayPort | HDMI 2.1 and type-c dp v1.4 | ||||||||
| ◆ HDD file system | FAT16/FAT32/NTFS | ||||||||
| ◆ Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB | ||||||||
| ◆ High Definition video output | 4K(3840*2160 pixel ) | ||||||||
| ◆ LAN | Ethernet:2Ports 1000M standard RJ-45 | ||||||||
| ◆ Wireless | AP6256 80MHZ 2.4G /5G dual-band Wifi, IEEE 802.11 a/b/g/n/ac | ||||||||
| ◆ Bluetooth | V5.1 EDR and BLE | ||||||||
| ◆ HDMI | HDMI 2.1 for 4k@120Hz | ||||||||
